HX160MP 45 Minutes Battery Time Load 30KG 6-Rotor Wing Drone Foldable Body Industrial Camera Inspection Industrial UAV
Features and Advantages
- 1. Closed fuselage structure,high strength,rain resistance
- 2. HX160MP is made of carbon fiber material which features light weight and high strength, and only the cover is made of glass fiber.
- 3. Detachable design makes it easy to transport and quick to setup.
- 4. Powerful and high efficiency power system
- 5. Heavy load, more stable flight
- 6. The arm of HX160 series hexacopter is pluggable, both the cover and arms can be locked with the quick locking hooks.
HX160MP is a new integrated flight platform. The lightweight design and heavy-duty power system greatly improve the performance and reliability of the multi-rotor industrial drone.
The large space design between the center plate and the ground allows the drone to mount a variety of equipment, suitable for various industries: aerial photography, emergency rescue, reconnaissance missions, remote sensing surveys, surveying and mapping, etc.
Compatible with DJI Accessories
At the same time, HX160MP supports a series of DJ | accessories including Lightbridge 2, DJI Assistant 2, etc. The rich application expansion can help drone enthusiasts and industry application explorers to provide stable and comprehensive system-level solutions.
Equipped with N3 flight control system
The N3 industrial multi-rotor flight control system adopts DJI's latest control and navigation algorithm, and the newly added built-in dual IMU redundancy design can realize real-time data backup for each other. Combined with the new internal shock absorption structure design, it gives the aircraft high reliability.

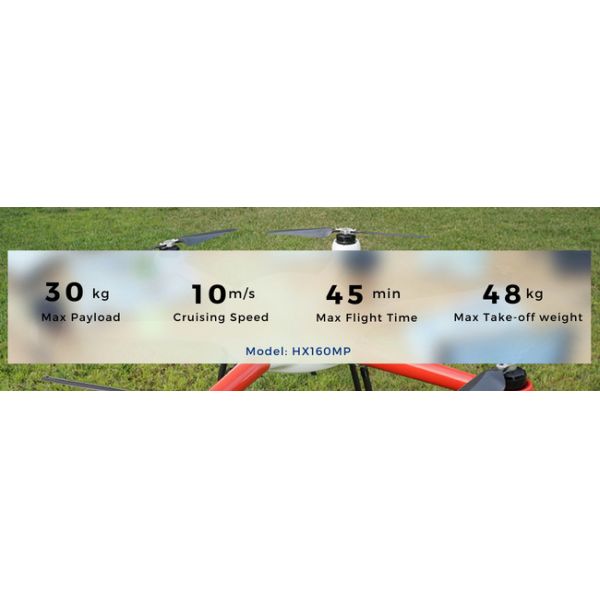

HX160MP Specifications
Rotor Wing Drone |
| Wheelbase | 1620mm |
| Frame Weight | 5.8kg(with landing gear) |
| Take-off Weight | ≥48kg |
| Flight Time | ≥45min(4x6s 16000mah) |
| Max Effective Load | 30kg |
| Max flying Speed | 10m/s |
| Max Lifting Speed | 5m/s |
| Max Descent Speed | 4m/s |
| Max Angle of Inclination | 45° |
| Suggested Flight Altitude | ≤500m |
| Working Temperature | -10 ~ +55 ℃ |
| Hover Precision | Vertical Direction ±0.5m, Horizontal Direction:±1.5 m |
